Chris Cox, N0UK
Detail not shown is original or per standard AM6155 conversion.
Remove 4 cathode bias resistors and solder cathode pins directly to deck.
Remove all ceramic/mica capacitors from grid circuitry.
Remove original "pedestal" inductor.  Cut off and keep 1.5 inches of cold end and use to reseal grid cavity.

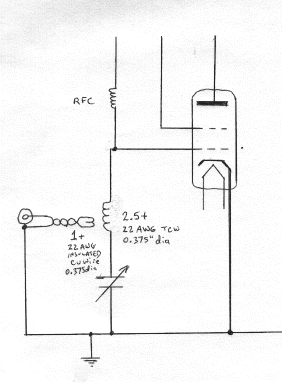

One turn insulated coil is positioned inside cold end of 2.5 turn coil.
Return to Modifications page.
15 September 2000
