[10gigs] W0AUS/B spurs?

[Barry VE4MA]

GA Chris,

How far below the main carrier are the spurs?

Seems like the signal is very strong....is it always that strong?  I wonder
if those spurs are always there but down far enough that you just dont see
them?

The PLL based beacon here in Phoenix has spurs but they are down many dB,
but when the signal is about S7  you can see them.  They are out further
from the carrier however

Best 73 & HNY
Barry VE4MA/K7

On Tue, Jan 3, 2023 at 12:31 PM Chris Cox, N0UK via 10gigs <
10gigs at www.chris.org> wrote:

> *****************************
> *** NLRS Area 10GHz Alert ***
> *****************************
>
> Chris Cox, N0UK
> chrisc at chris.org
> https://www.credly.com/go/IR77aRbH2rFDdOiymuxu2w
>
>
>
> On Jan 03, 2023, at 13:27, Chris Cox, N0UK <chrisc at chris.org> wrote:
>
> I meant to mention that I have not noticed these in the past.
>
> Chris Cox, N0UK
> chrisc at chris.org
> https://www.credly.com/go/IR77aRbH2rFDdOiymuxu2w
>
>
>
> On Jan 03, 2023, at 13:26, Chris Cox, N0UK via 10gigs <
> 10gigs at www.chris.org> wrote:
>
> *****************************
> *** NLRS Area 10GHz Alert ***
> *****************************
> Is anyone else copying the W0AUS beacon on 10368.202 currently?
>
> I have found what may be a problem with my main rig but I’d like
> confirmation.
>

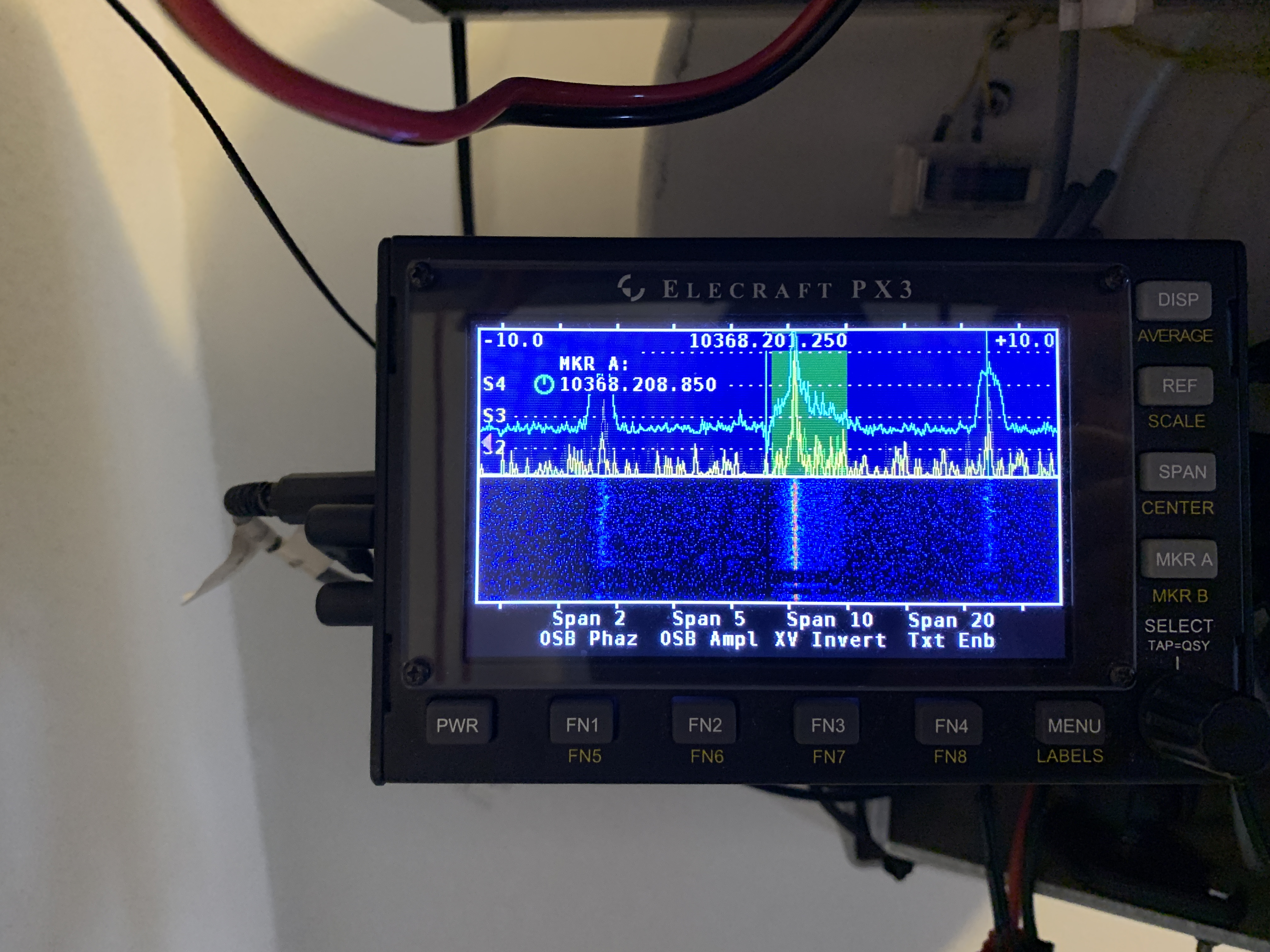

> I am seeing spurs ~7kHz above and below the main carrier frequency.  I
> swapped out my 10MHz OCXO reference for a GPSDO but that did not cause the
> spur to disappear.
>
> Chris Cox, N0UK
> chrisc at chris.org
> https://www.credly.com/go/IR77aRbH2rFDdOiymuxu2w
>
>
>
> _______________________________________________
> 10gigs mailing list
> 10gigs at www.chris.org
> https://www.chris.org/mailman/listinfo/10gigs
>
>
> _______________________________________________
> 10gigs mailing list
> 10gigs at www.chris.org
> https://www.chris.org/mailman/listinfo/10gigs
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.chris.org/pipermail/10gigs/attachments/20230103/1727608d/attachment-0003.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_2263.JPG
Type: image/jpeg
Size: 3247853 bytes
Desc: not available
URL: <http://www.chris.org/pipermail/10gigs/attachments/20230103/1727608d/attachment-0003.jpe>
